Audio API

Hypercolor’s audio pipeline runs FFT, beat detection, spectral analysis, mel-band binning, chromagram estimation, and harmonic mood inference every frame. Effects get all of that as a single AudioData value, pulled per frame.

There are two AudioData shapes, and they do not share field names. TypeScript canvas and shader effects see the camelCase SDK surface documented on this page. Native Rust effects see a smaller snake_case struct. The split is the most common thing docs get wrong, so it has its own section near the bottom: Rust vs TypeScript field names.

🔗Getting audio data

Canvas effects pull with audio() (a re-exported alias of getAudioData(), declared as export { getAudioData as audio }):

import { audio, canvas } from "hypercolor";

export default canvas(
  "Pulse",
  controls,
  (ctx, time, controls) => {
    const a = audio();
    const intensity = Math.max(a.beatPulse, a.bassEnv * 0.6);
    // ...
  },
  { audio: true },
);

The pull is per frame: call audio() inside the draw function every frame, not once at module load. Outside the daemon (a bare browser, or the build’s metadata pass) it returns a silent default rather than throwing, so effects render in preview without audio wired up.

Shader effects get audio through auto-registered uniforms when audio: true is set:

uniform float iAudioBass;
uniform float iAudioBeatPulse;
uniform float iAudioHarmonicHue;
// ...

The shader uniform surface is a strict subset of the canvas surface. Array fields (chromagram, melBands, raw frequency) are canvas-only; if a shader needs pitch-class data it has to drop to a canvas effect. See GLSL effects for the complete uniform list. This page covers the full canvas AudioData surface, which is what to reach for when you need more than the shader subset.

🔗The AudioData surface

interface AudioData {
  // Levels
  level: number; // 0-1 overall RMS
  levelRaw: number; // raw dB, -100 to 0
  levelShort: number; // short-window envelope
  levelLong: number; // long-window envelope
  density: number; // spectral flatness (0-1)
  width: number; // stereo width (0-1)

  // Bands
  bass: number; // 0-1
  mid: number; // 0-1
  treble: number; // 0-1
  bassEnv: number; // attack envelope
  midEnv: number;
  trebleEnv: number;

  // Beats
  beat: number; // 1 on beat frame
  beatPulse: number; // decaying pulse after beat (1 → 0)
  beatPhase: number; // phase within current beat (0-1)
  beatConfidence: number; // 0-1
  tempo: number; // estimated BPM
  momentum: number; // level derivative (-1..1)
  swell: number; // positive momentum (0-1)

  // Raw FFT
  frequency: Float32Array; // 200 bins, 0-1
  frequencyRaw: Int8Array; // 200 raw signed values
  frequencyWeighted: Float32Array; // 200 bins, A-weighted

  // Perceptual frequency
  melBands: Float32Array; // 24 bands
  melBandsNormalized: Float32Array; // 24 bands with rolling AGC

  // Onsets
  spectralFlux: number; // overall flux
  spectralFluxBands: Float32Array; // per-band [bass, mid, treble]
  onset: number; // 1 on onset frame
  onsetPulse: number; // decaying onset

  // Harmony
  chromagram: Float32Array; // 12 pitch classes (C..B)
  dominantPitch: number; // 0-11
  dominantPitchConfidence: number; // 0-1
  harmonicHue: number; // 0-360, Circle of Fifths
  chordMood: number; // -1 minor..+1 major

  // Timbre
  brightness: number; // spectral centroid
  spread: number; // spectral spread
  rolloff: number; // high-frequency rolloff
  roughness: number; // dissonance
}

The fixed sizes are worth memorizing: frequency, frequencyRaw, and frequencyWeighted are 200 elements; melBands and melBandsNormalized are 24; chromagram is 12 (one per chromatic pitch class). They are exported as constants too: FFT_SIZE (200), MEL_BANDS (24), PITCH_CLASSES (12).

That’s a lot of surface. The guidance below pairs mood and motion to the right field.

🔗When to reach for what

🔗For impact

beatPulse is the go-to for “kick hit feels like a drum.” It decays over a handful of frames, so multiplying it into a size or brightness gives a nice punch without flickering.

const punch = a.beatPulse;
const radius = base + punch * minDim * 0.2;

onsetPulse catches transients that aren’t metrical beats: snare rolls, fills, non-drum onsets. Use it when you want a reaction that isn’t tied to a metronome.

bass is a raw band level; use it when you want a continuous response to low-end energy, not an impulse.

🔗For structure

levelShort is the short-window RMS envelope. Good for “overall loudness right now” without the jitter of level. Multiply it into line widths, glow radii, or alpha.

levelLong is the long-window version. Use it for drift, breathing, or slow trend adaptation.

momentum is the derivative of level. Positive means things are getting louder; negative means quieter. swell is the positive half, which is what you usually want for “rising.”

🔗For mood

chordMood is the minor-to-major axis. Negative leans minor; positive leans major. Shift warm/cool palettes, curl petals inward, tilt angles, any gesture that reads as “sad” versus “bright.”

const warmth = Math.max(a.chordMood, 0);
const minorness = Math.max(-a.chordMood, 0);

harmonicHue is the Circle of Fifths mapped to a hue wheel (0-360). Rotate palette sampling by this value so harmonic movement in the music becomes color movement on the hardware.

const hueOffset = a.harmonicHue / 360;
ctx.fillStyle = pal((t + hueOffset) % 1);

🔗For pitch-class detail

chromagram is the most underused audio surface. It’s 12 floats, one per chromatic pitch class, each representing how much energy is at that note across all octaves. Map chroma indices onto spatial positions for structures that literally track the music’s harmony.

for (let i = 0; i < 12; i++) {
  const energy = a.chromagram[i];
  drawPetalAtAngle((i / 12) * Math.PI * 2, energy);
}

dominantPitch is the pitch class with the most energy (0-11, C through B). dominantPitchConfidence tells you how clean the winner is. Combine them to only punch up the dominant pitch when there’s an obvious one:

if (a.dominantPitchConfidence > 0.6) {
  highlightPetal(a.dominantPitch);
}

🔗For spectral detail

melBands is 24 perceptually-spaced frequency bands (0-1). melBandsNormalized applies rolling AGC to keep bands hot even in quiet passages. These are the right tool for bar visualizers, spectrograms, and anything that shows the spectrum as a shape.

spectralFluxBands is per-band rate of change as a 3-vector [bass, mid, treble]. Use it to kick specific zones when their band gets busy.

brightness, spread, rolloff, and roughness are scalar timbre descriptors. brightness correlates with “brighter sound” (lots of high-frequency content), spread with “how wide the spectrum is,” rolloff with “where the energy falls off,” roughness with “how dissonant it is.” Use them for fine-grained mood modulation that goes beyond the major/minor axis.

🔗Raw FFT

frequency is the 200-bin FFT, normalized 0-1. frequencyWeighted is A-weighted to match perceived loudness. frequencyRaw is the same 200 bins as a signed 8-bit array (Int8Array), kept for compatibility with LightScript-era effects. Drop down to raw FFT only when you want custom band shaping that doesn’t fit the mel bands.

🔗Idle behavior

With no audio, every audio field is zero or a sensible idle value. Don’t gate behavior on strict equality with zero; clamp to a floor so the effect stays alive in a quiet room:

const level = Math.max(a.levelShort, 0.04);

A breathing baseline derived from time is a good companion for idle:

const breath = 0.5 + 0.5 * Math.sin(time * 0.6);
const alive = level + breath * 0.3;

🔗Anti-patterns

Maxing every band. Shoving bass, mid, and treble into three separate visual channels tends to flatten everything to white noise. Pick one band for structure and one for sparkle; ignore the third or use it sparingly.

Using raw beat as a threshold. beat is a single-frame signal. Effects that gate on beat > 0.5 flicker unpleasantly. Use beatPulse for smooth decay instead, and prefer routing beat energy into motion rather than brightness.

Depending on tempo. tempo is an estimate and swings during intros and bridges (its silent default is 120). Don’t use it as a frame budget; use it for display or for long-window averaging.

Ignoring beatConfidence. On non-rhythmic music, the beat detector still fires but with low confidence. Multiply your beat response by beatConfidence to stay graceful:

const beatGate = a.beatPulse * a.beatConfidence;

🔗Audio helpers

The SDK ships a handful of utilities for common audio transforms:

import {
  getBassLevel,
  getMidLevel,
  getTrebleLevel,
  getFrequencyRange,
  getMelRange,
  getPitchClassName,
  getPitchClassIndex,
  getPitchEnergy,
  pitchClassToHue,
  getHarmonicColor,
  getMoodColor,
  getBeatAnticipation,
  getScreenZoneData,
  isOnBeat,
  normalizeAudioLevel,
  normalizeFrequencyBin,
  smoothValue,
} from "hypercolor";

getBassLevel, getMidLevel, and getTrebleLevel take the frequency array and average fixed bin ranges (0-10, 10-80, 80-200). getFrequencyRange(frequency, start, end) averages an arbitrary bin range when the default three bands aren’t what you need. getMelRange(audio, startBand, endBand) does the same against melBandsNormalized. smoothValue(current, previous, smoothing) is an exponential smoother for damping a jittery field (default smoothing 0.5). normalizeFrequencyBin(value, max) clamps a single raw bin to 0-1 (default max of 128).

getPitchClassName(index) and getPitchClassIndex(name) convert between pitch-class integers (0-11) and note names ("C", "C#", …). getPitchEnergy(audio, pitchClass) returns the chromagram energy at a specific pitch class, accepting either an index or a note name. pitchClassToHue(pitchClass) maps a pitch class to a hue via the Circle of Fifths.

getHarmonicColor(audio, saturation?, lightness?) maps the current harmonicHue to an RGB triple (defaults 0.7/0.5). getMoodColor(majorColor, minorColor, audio) blends between two RGB colors along chordMood. getBeatAnticipation(audio, anticipation?) returns a value that rises just before the predicted next beat, useful for pre-fire effects. isOnBeat(audio, division?, tolerance?) is a boolean phase test against beatPhase.

getScreenZoneData() returns the 28×20 screen color grid (560 sample points of hue, saturation, and lightness) for screen-reactive effects that respond to a region of the captured display rather than the audio stream.

🔗Rust vs TypeScript field names

The audio pipeline runs in the Rust daemon and produces one analysis snapshot per DSP frame. That snapshot reaches effects two different ways, and the field names differ on each side.

For TypeScript effects, the daemon injects a JavaScript object onto engine.audio every frame. The SDK’s getAudioData() reads that injected object and assembles the rich camelCase AudioData documented above, filling any field the daemon did not provide with a silent default (a zero-filled FFT_SIZE/MEL_BANDS/PITCH_CLASSES array for the array fields, sensible scalars like tempo: 120 and brightness: 0.5 for the rest).

For native Rust effects, the daemon hands a &AudioData directly inside FrameInput. That struct (hypercolor_types::audio::AudioData) is a smaller snake_case surface, and several names differ from the TypeScript side. Documenting one set of names for both paths is the most common mistake.

The Rust struct also exposes bass(), mid(), and treble() as methods that average bin ranges of spectrum (bins 0-39, 40-129, 130-199), and AudioData::silence() for the zero-filled no-audio case. The constants live on the Rust side too: SPECTRUM_BINS (200), MEL_BANDS (24), CHROMA_BINS (12).

The TypeScript surface is much larger: bassEnv, harmonicHue, chordMood, dominantPitch, spread, rolloff, roughness, momentum, swell, and the envelope fields are canvas-only conveniences derived on top of the same analysis. Native Rust effects compiled into core/src/effect/builtin/ consume the smaller snake_case struct directly through FrameInput.audio and register via core/src/effect/builtin/mod.rs. The audio_pulse builtin is the canonical reference for reading the native surface.

🔗Designing audio reactivity

Two rules that separate good audio-reactive effects from frantic ones:

1. Give the effect a life of its own. Idle motion that’s not driven by audio means the effect reads as alive when music is playing and still alive when it isn’t. A Math.sin(time * 0.6) breathing baseline is what makes an effect look intentional in silence.

2. Use harmony, not just energy. Bass and beat get used in every beginner effect. chromagram, harmonicHue, and chordMood are what make an effect feel musically literate. Reach for them.

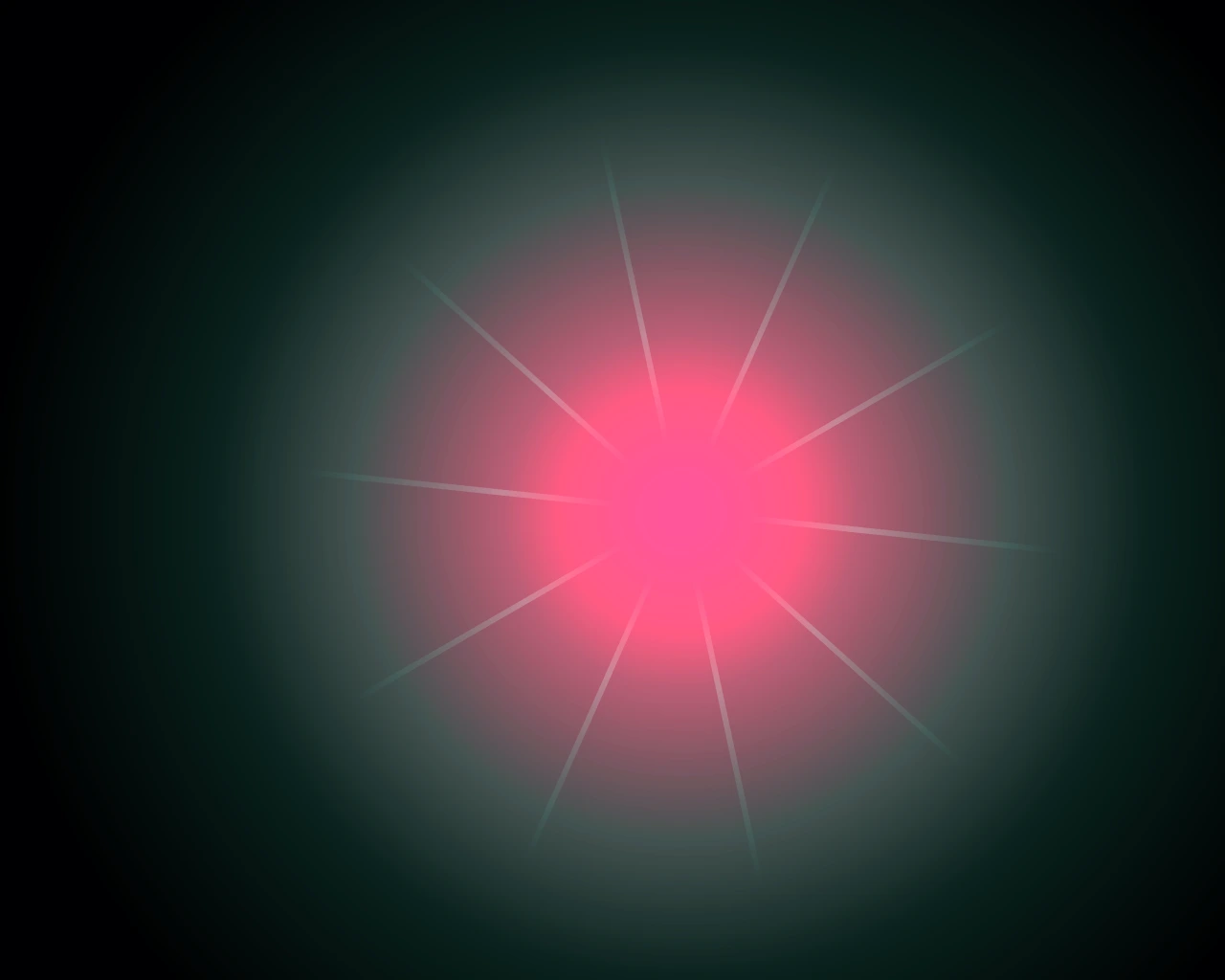

To hear it on real hardware, set up a capture source in audio setup, then apply an audio-reactive effect such as audio-pulse, cymatics, or spectral-fire and watch the spectrum react. For the shader-side surface, see GLSL effects. The compiled-in native path reads the snake_case struct described above through core/src/effect/builtin/.
